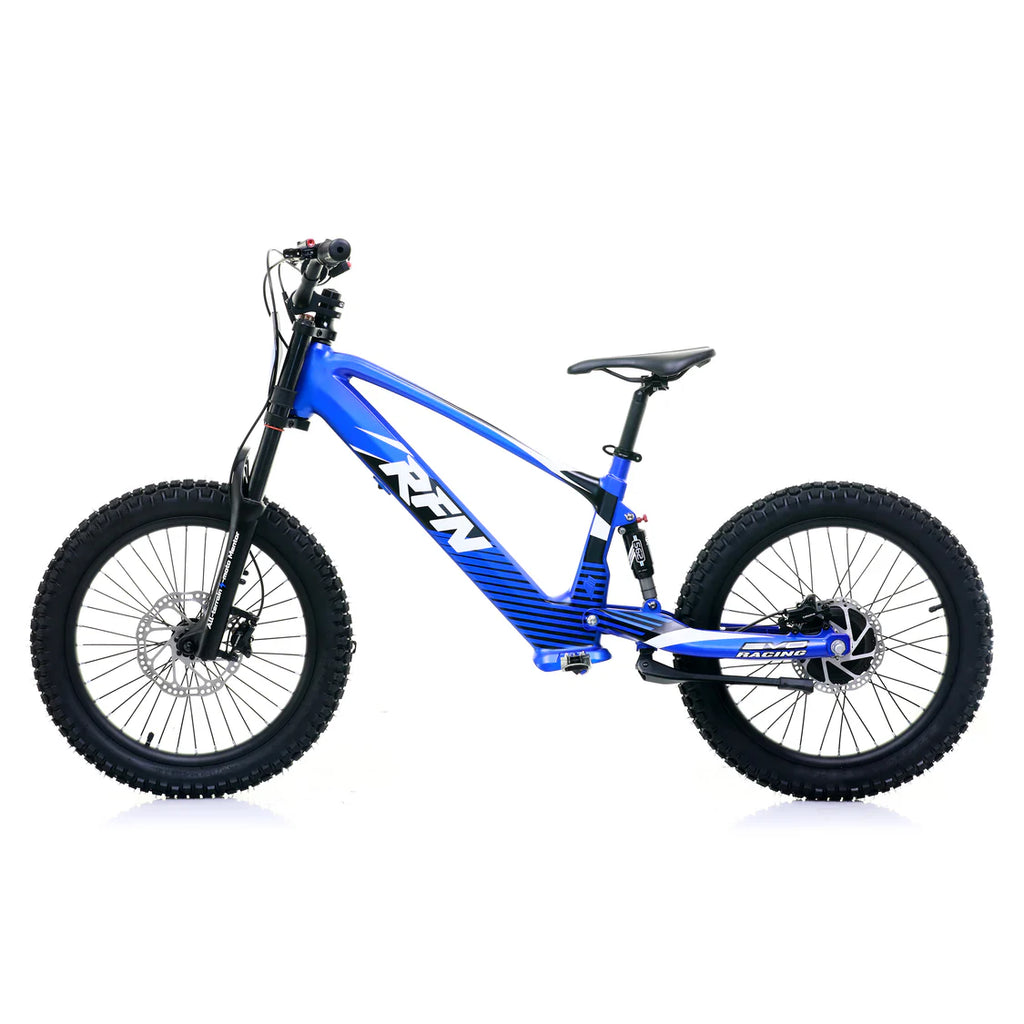

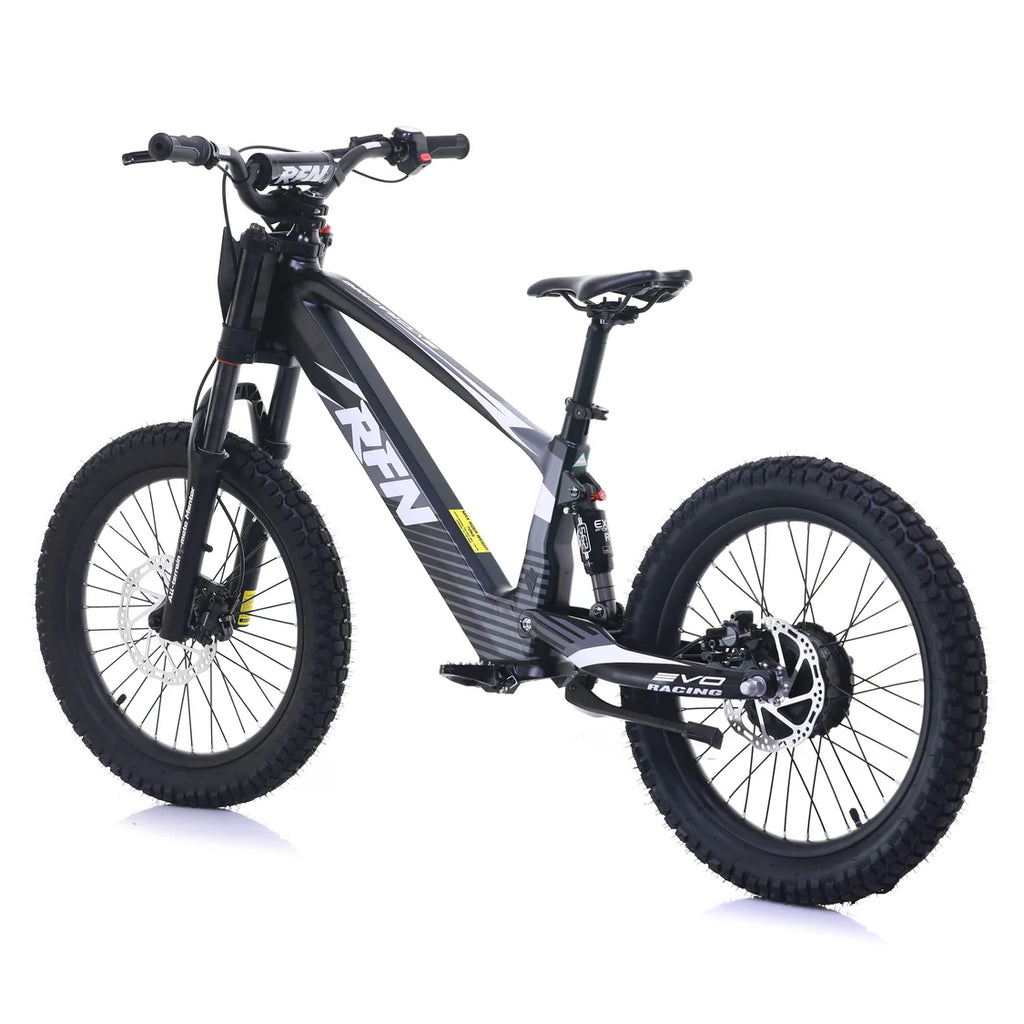

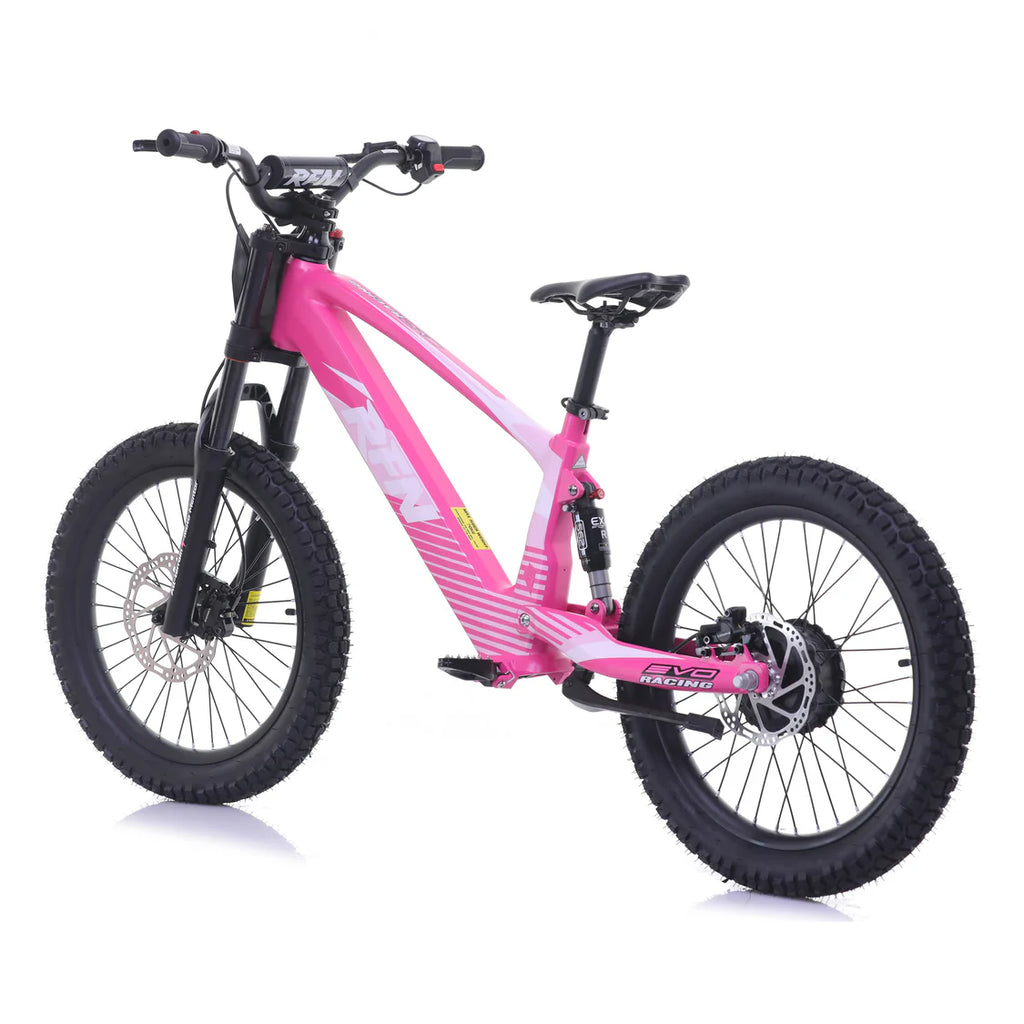

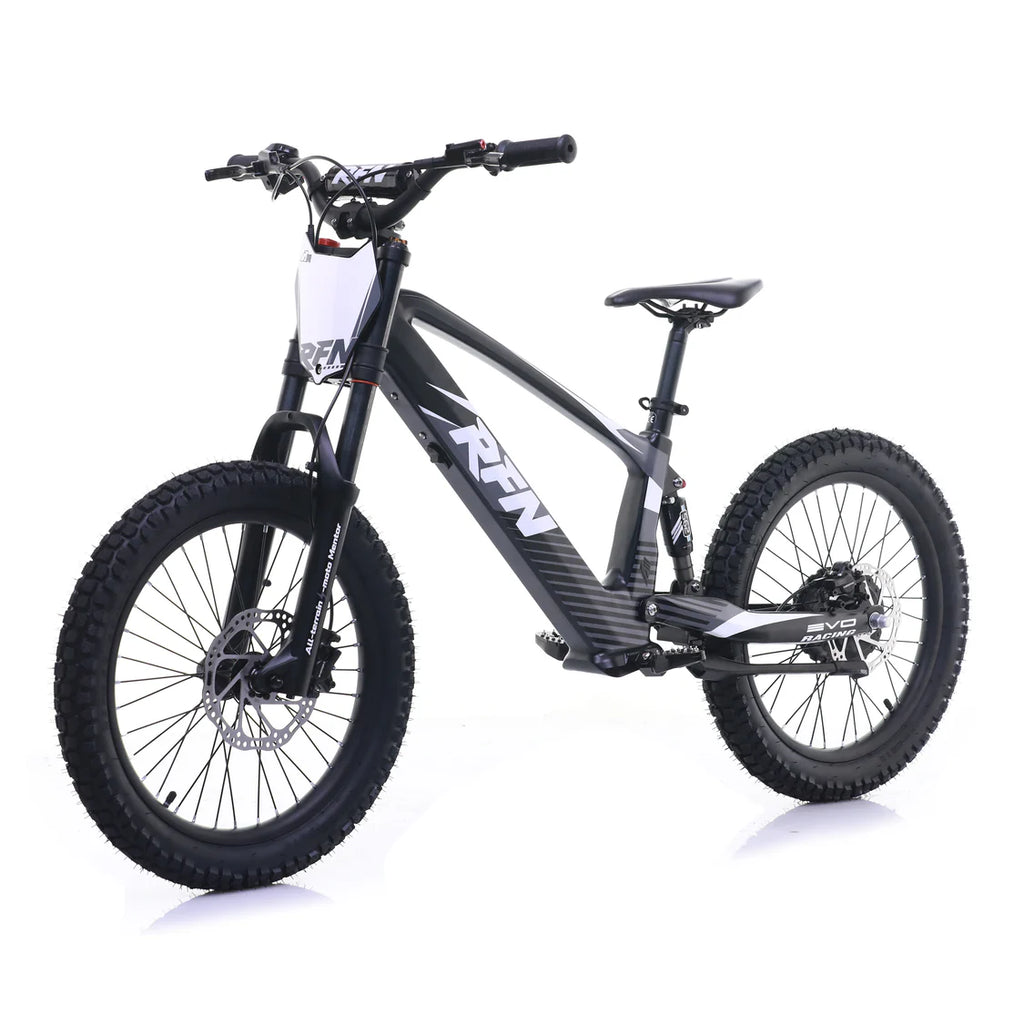

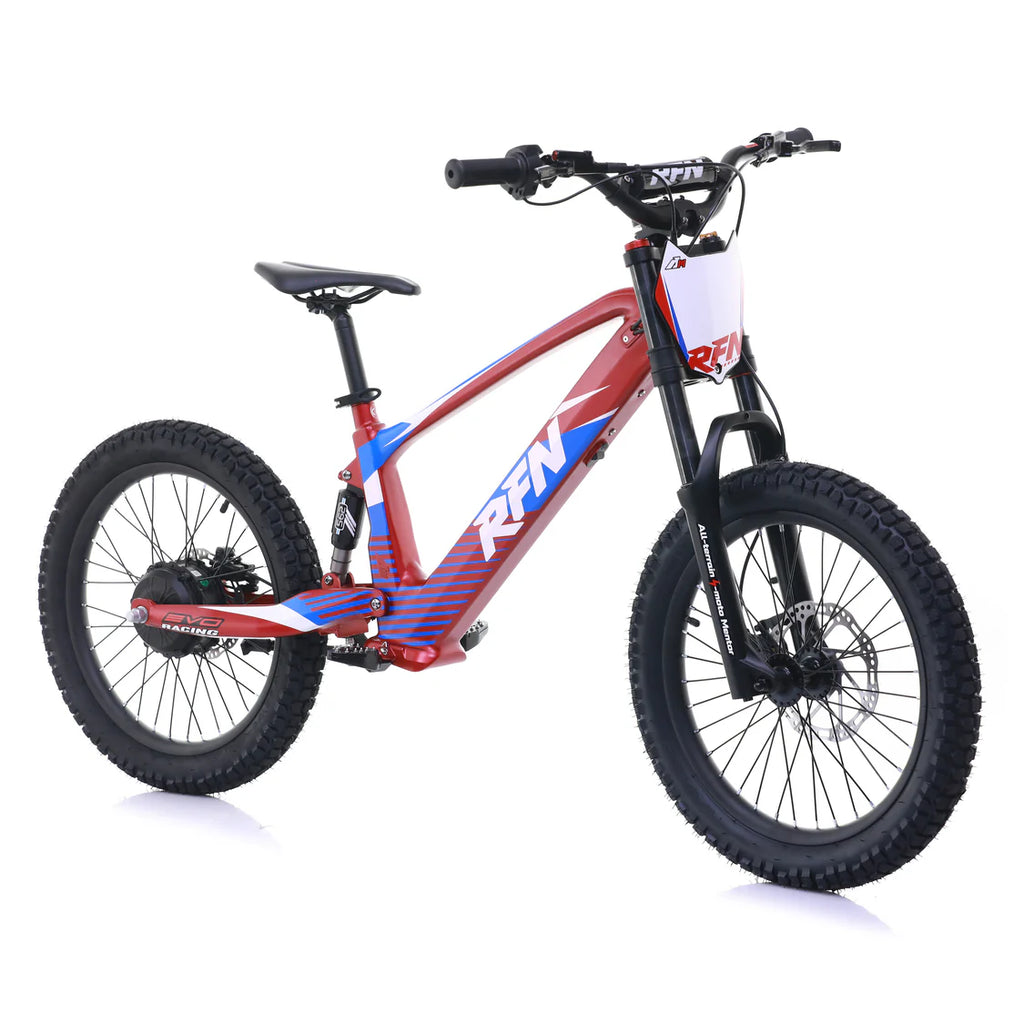

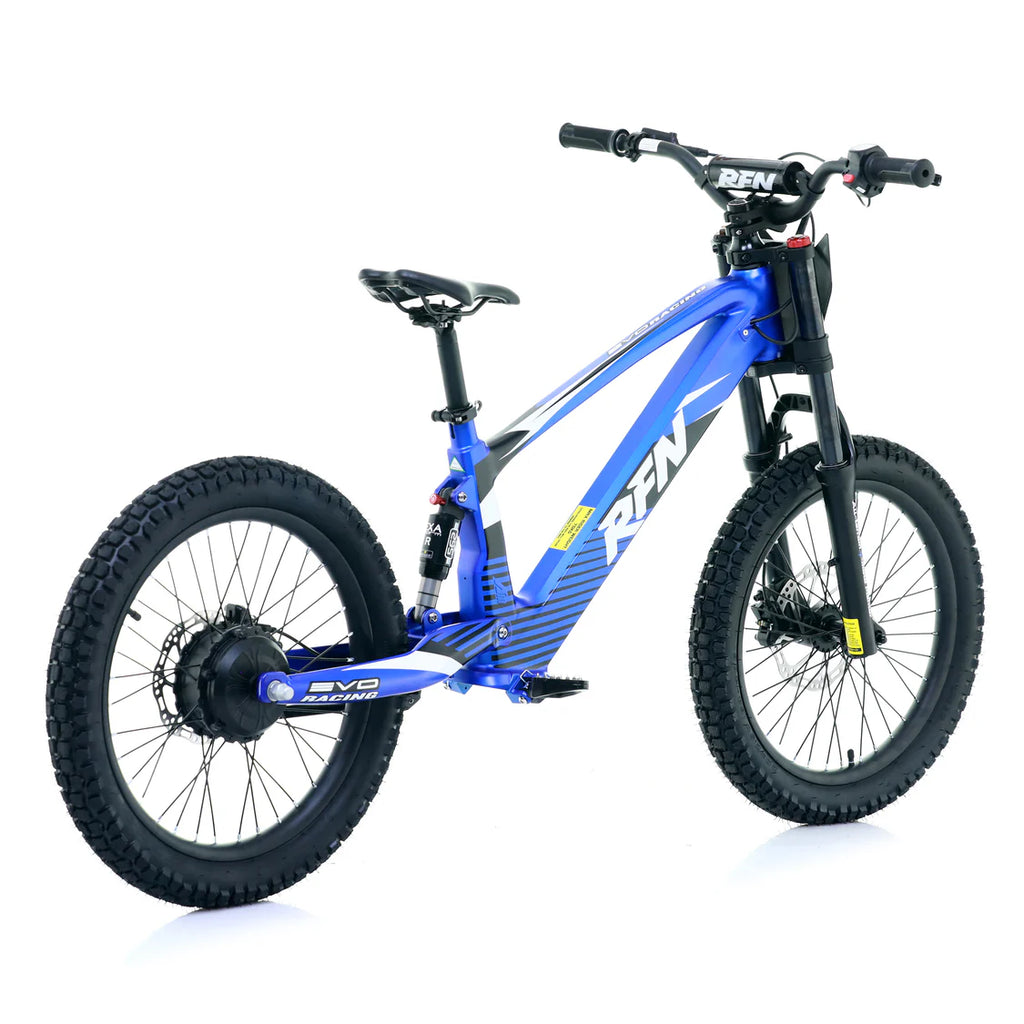

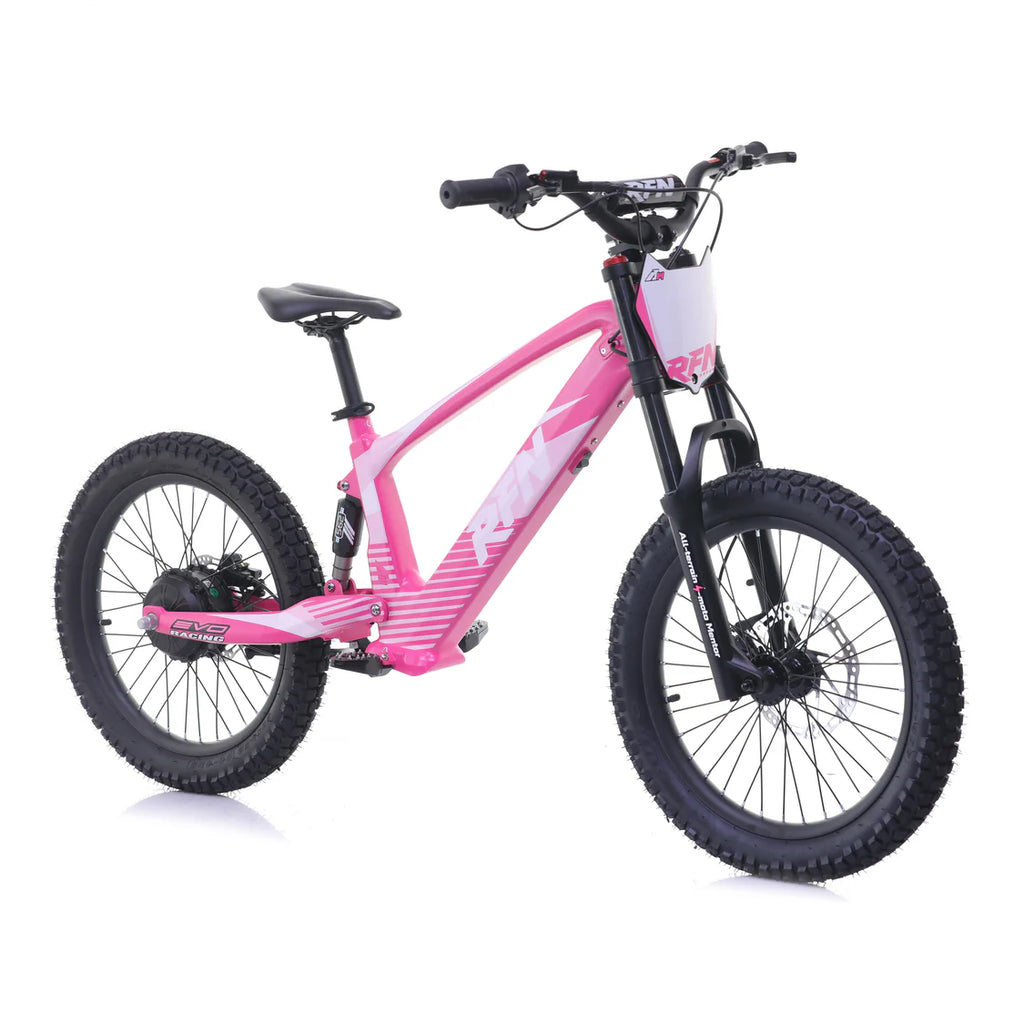

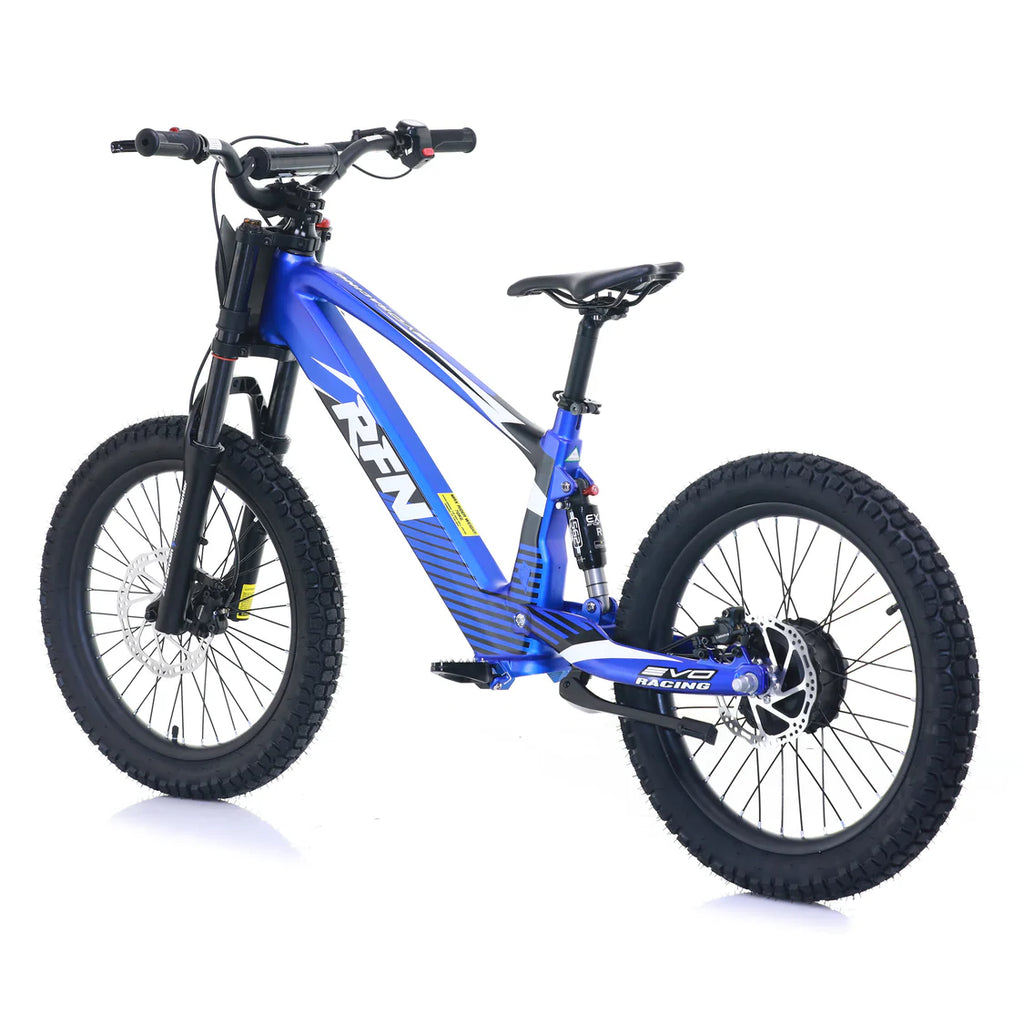

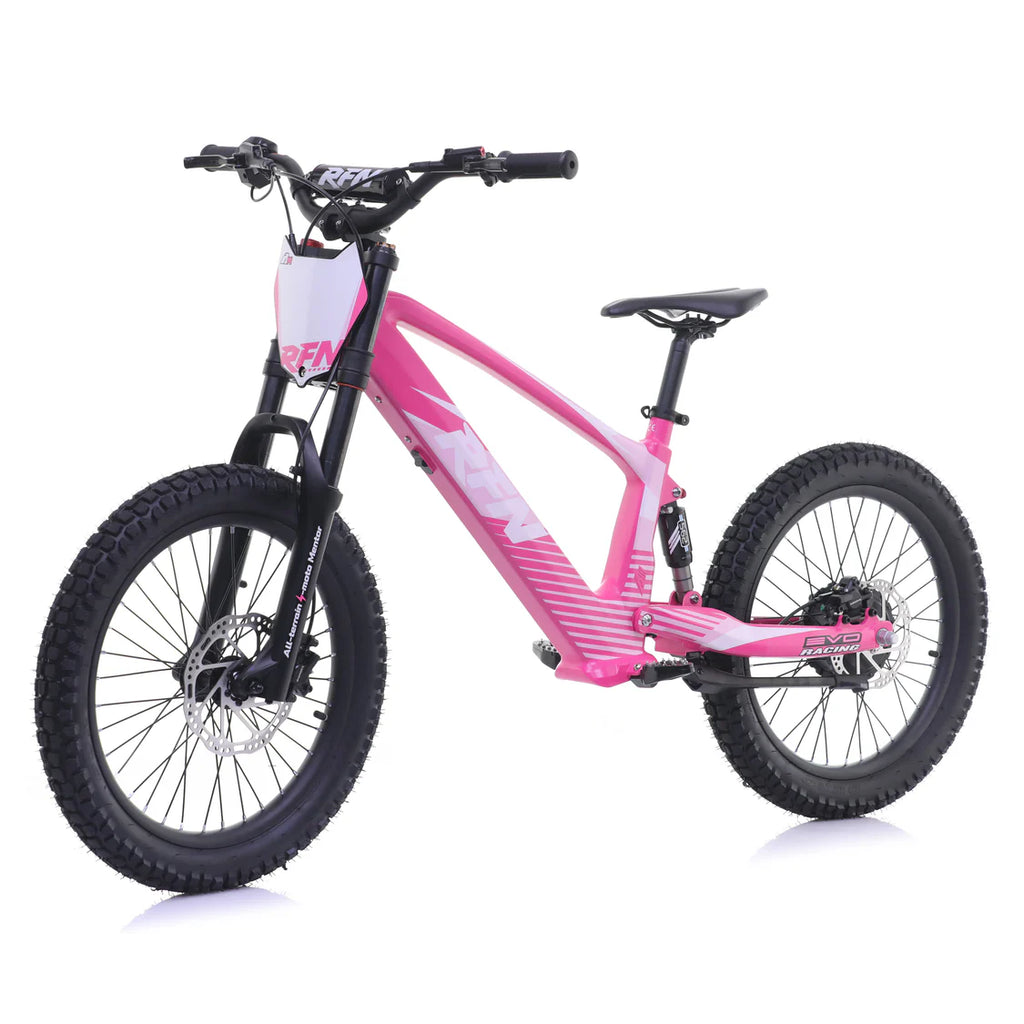

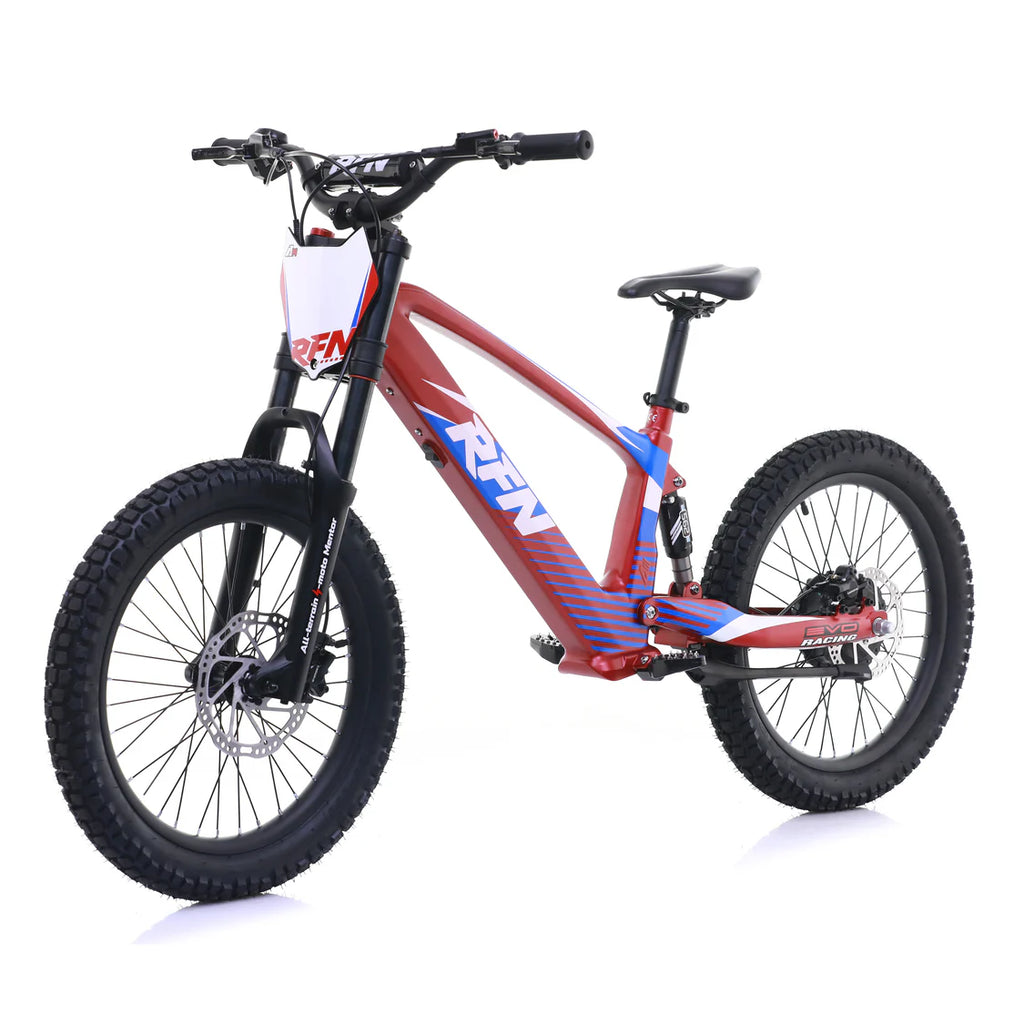

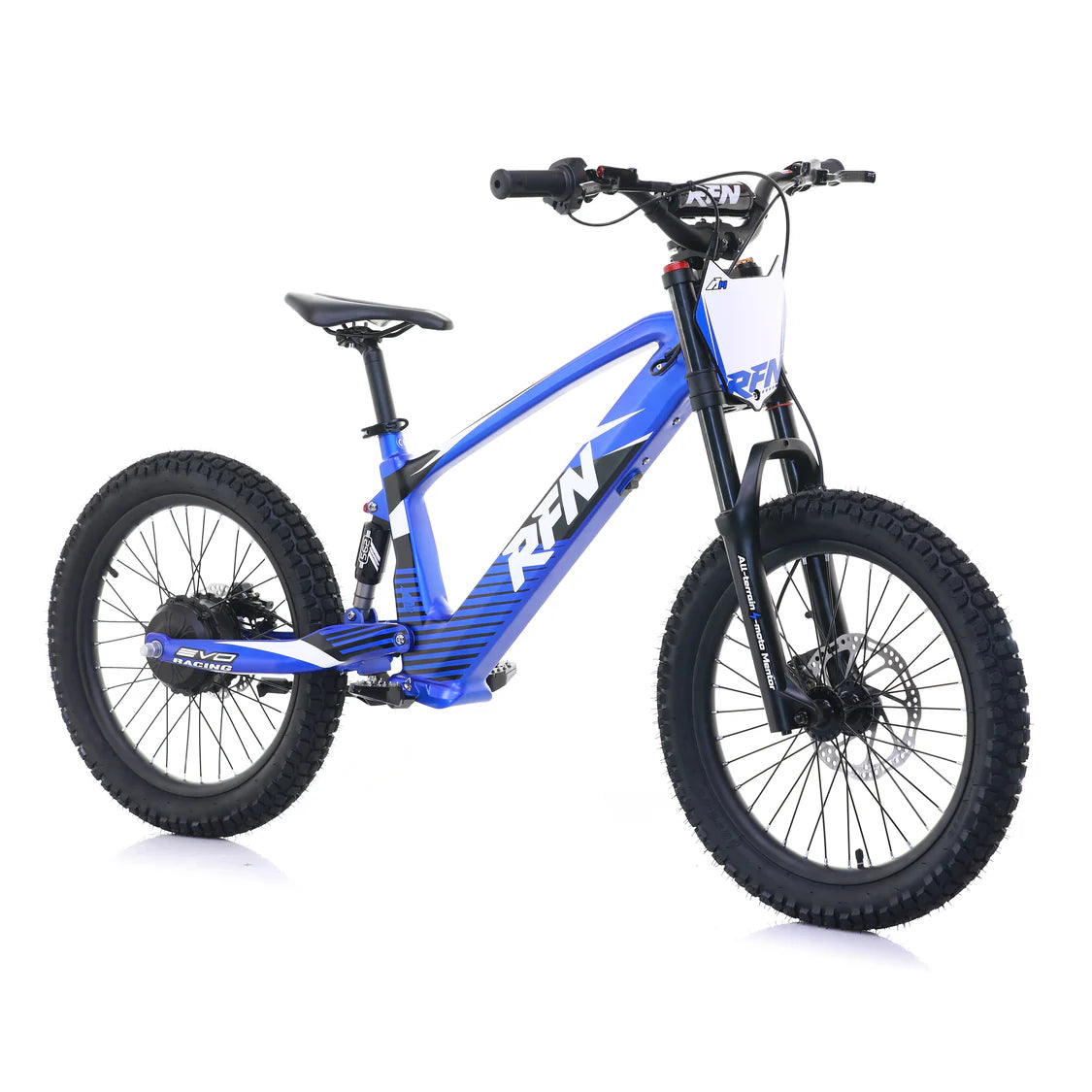

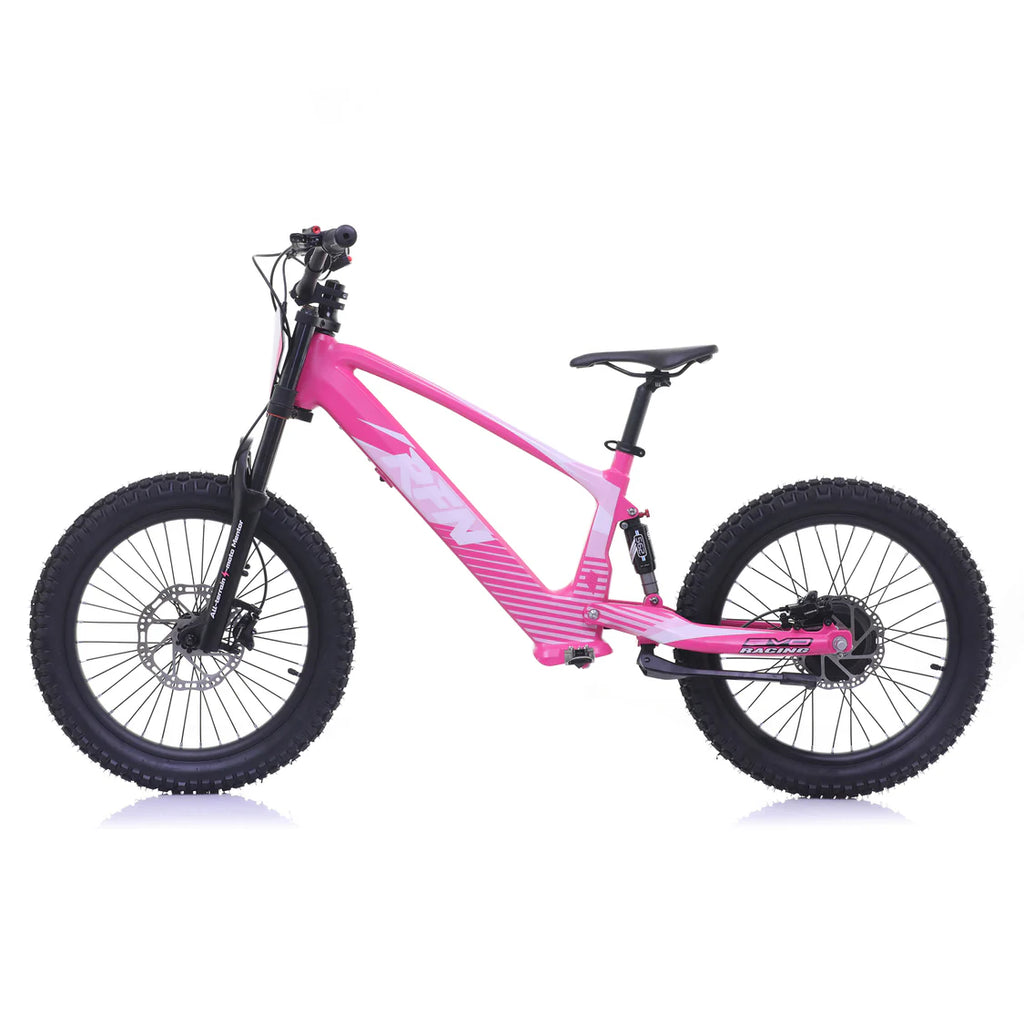

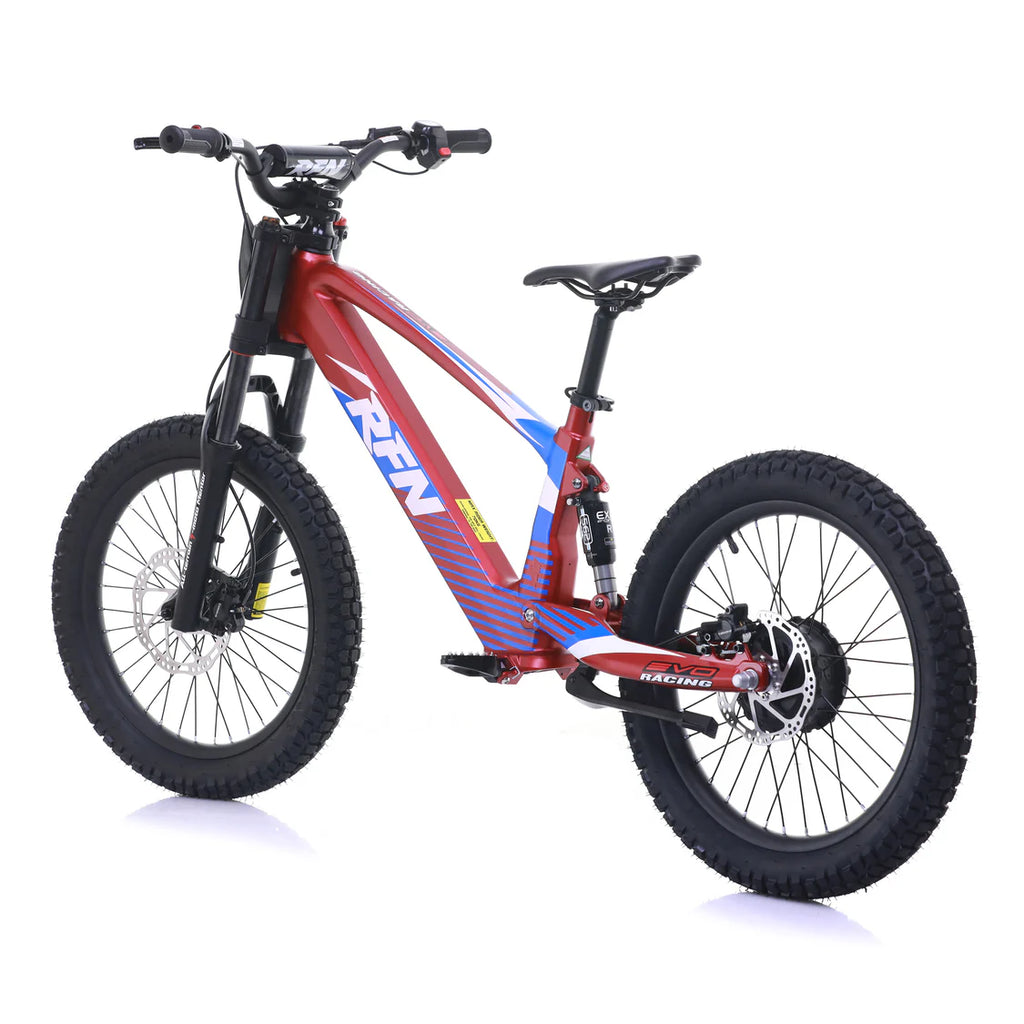

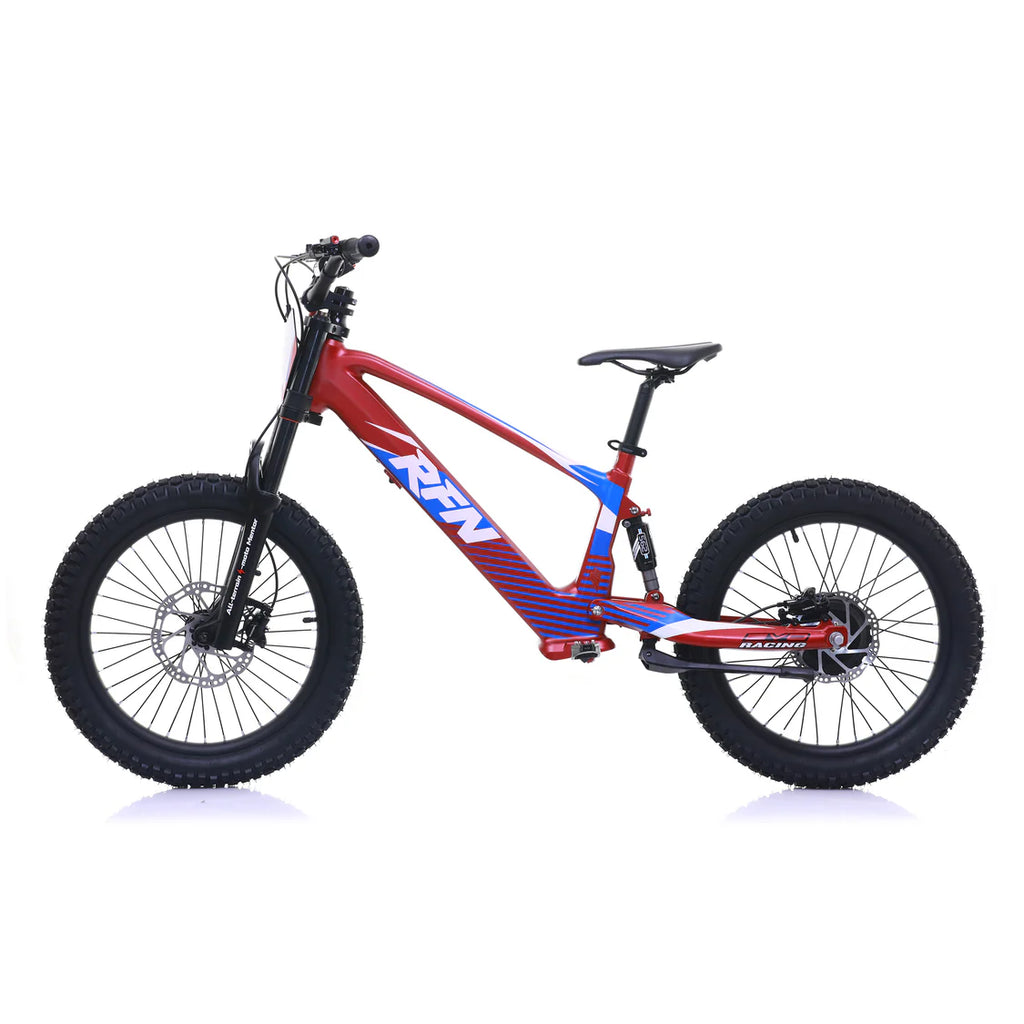

RFN EVO RACING 20

Specs -

Frame Aluminium alloy Tire 20X2.5 (Mountain tread)

Color Red / Blue Rims Magnesium alloy wheel

Front Fork Front suspension fork Endurance mileage39KM

Brake F/R Hydraulic brake Max speed35km/h

Handle bar6061/Φ19*31.8*640mmN.W22.3kg

Stem6061/28.6*25.4mmG.W26.1kg

Saddle Vacuum Integrated Seat Max load75kg

Grip Non-slip silicone grip Package size134*25*69cm

Electrical Motor Motor Model Integrated wheel Rated power36V750WWheel base178mm Open128mm Wheel diameter 20″Max power output 850W No-load current≤2ANo-load speed360r/min Rated speed340r/min Rated current 16.7A Torque 52.5N.m Efficiency≥81% Waterproof level IP66

Controller Control mode Sine wave Rated Voltage 36V Speed limit35km/h Current limiting 30AMax output850W Undervoltage protection value28±1V Stoppage protection duration1sSpeed governing Low : 15km/h
Middle: 25km/h
High: 35 km/h Waterproof levelIP65

Battery Capacity7.5AH Cycling Life＞300 times Max current Instantaneous current 100A, continuous current 30A Waterproof levelIP54 Charging mode DC5.5*2.1 Charging voltage AC:100-240V
DC:42V3A Operating temperature’-20℃-60℃ Overcharge Protection 42.5±0.1V Over discharge protection26V Max current protection value 81±4A Short circuit protection With Temperature protection70℃

Display Display screen LED Waterproof level IP54 Voltage 36V
